A Low-Code Pattern for Managing HTTP-Triggered Power Automate URLs in CI/CD

Context: HTTP-Triggered Cloud Flows Usage Scenario

In a recent solution, a requirement emerged to deliver a planning experience directly within a model-driven app for sales users. The objective was to enable interactive planning while consuming data from existing line-of-business (LOB) systems.

The design introduced a PCF control implemented in TypeScript, embedded within the model-driven app, acting as the primary planning interface. This control needed to invoke existing APIs, adapt the responses for the UI, and persist the planned outcome into Dataverse as a custom activity record, including relevant reference keys from the source systems.

To support near real-time execution and a responsive user experience, as responsive execution status indicators, the solution leveraged HTTP-triggered Power Automate cloud flows invoked directly from the PCF control.

The HTTP trigger endpoints were abstracted using Dataverse environment variables
These variables were consumed directly within the PCF TypeScript code
The client-side UI remained environment-agnostic

This approach also enabled secure integration with on-premises systems via the On-Premises Data Gateway, without exposing internal services externally.

A deliberate low-code architectural approach was adopted, avoiding custom APIs or Dataverse plugins, while still meeting integration, security, and performance requirements.

The Hidden CI/CD Challenge

HTTP-triggered Power Automate flows introduce a subtle but impactful challenge in CI/CD pipelines.

The HTTP trigger URL is environment-specific
The URL is generated only after flow activation
It is not persisted as part of the Dataverse workflow definition

While the workflowid (the primary key of the Dataverse workflow record) remains consistent across environments, the HTTP trigger URL does not.

A Closer Look at HTTP Trigger URL Formation

To further clarify why HTTP-triggered Power Automate URLs cannot be treated as static configuration, it helps to look briefly at how the URL itself is constructed.

As shown in the snapshot below, the HTTP trigger URL consists of multiple segments. Not all parts behave the same across environments.

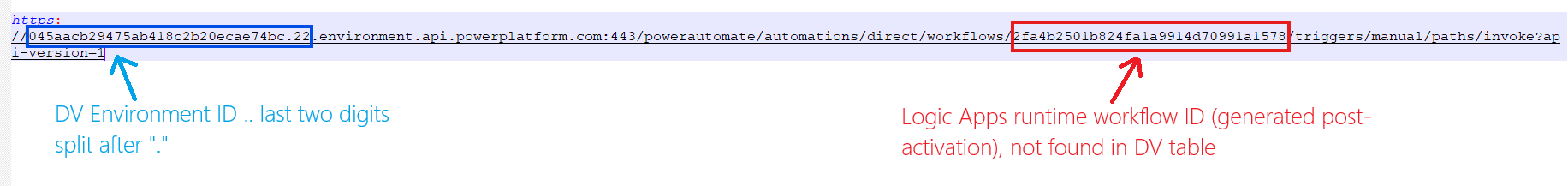

HTTP trigger URL anatomy — blue portion is Dataverse environment context, red portion is Logic Apps runtime workflow ID

The portion highlighted in blue is derived from the Dataverse environment context and can be inferred or reconstructed based on known Power Platform metadata.
The portion highlighted in red represents the Logic Apps runtime workflow ID, which is generated by the Logic Apps runtime only after the cloud flow is activated.

This runtime workflow ID is not available via Dataverse metadata, nor is it predictable during solution import. As a result, the complete HTTP trigger URL can only be resolved post-deployment, once the flow is active in the target environment.

This distinction is what makes HTTP-triggered flows fundamentally different from typical deploy-time configuration and explains why CI/CD pipelines must account for runtime URL resolution.

Why this matters in practice:

Environment variables populated in the source environment become invalid after deployment
Manual post-release updates are required to restore functionality
This directly conflicts with automation-first delivery and ALM principles

At scale, this introduces fragility, operational risk, and unnecessary manual effort.

Design Constraints

Solution addressing this problem needed to satisfy the following constraints:

Remain low-code
Avoid Dataverse plugins or custom server-side APIs
Integrate cleanly into CI/CD release pipelines
Eliminate manual post-deployment steps

Solution Overview

The solution introduced a post-deployment automation pattern that treats HTTP trigger URLs as runtime-generated configuration, rather than deploy-time constants.

Resolution occurs after solution import and flow activation
The process is fully automated and pipeline-driven
Client-side components remain decoupled from environment-specific details

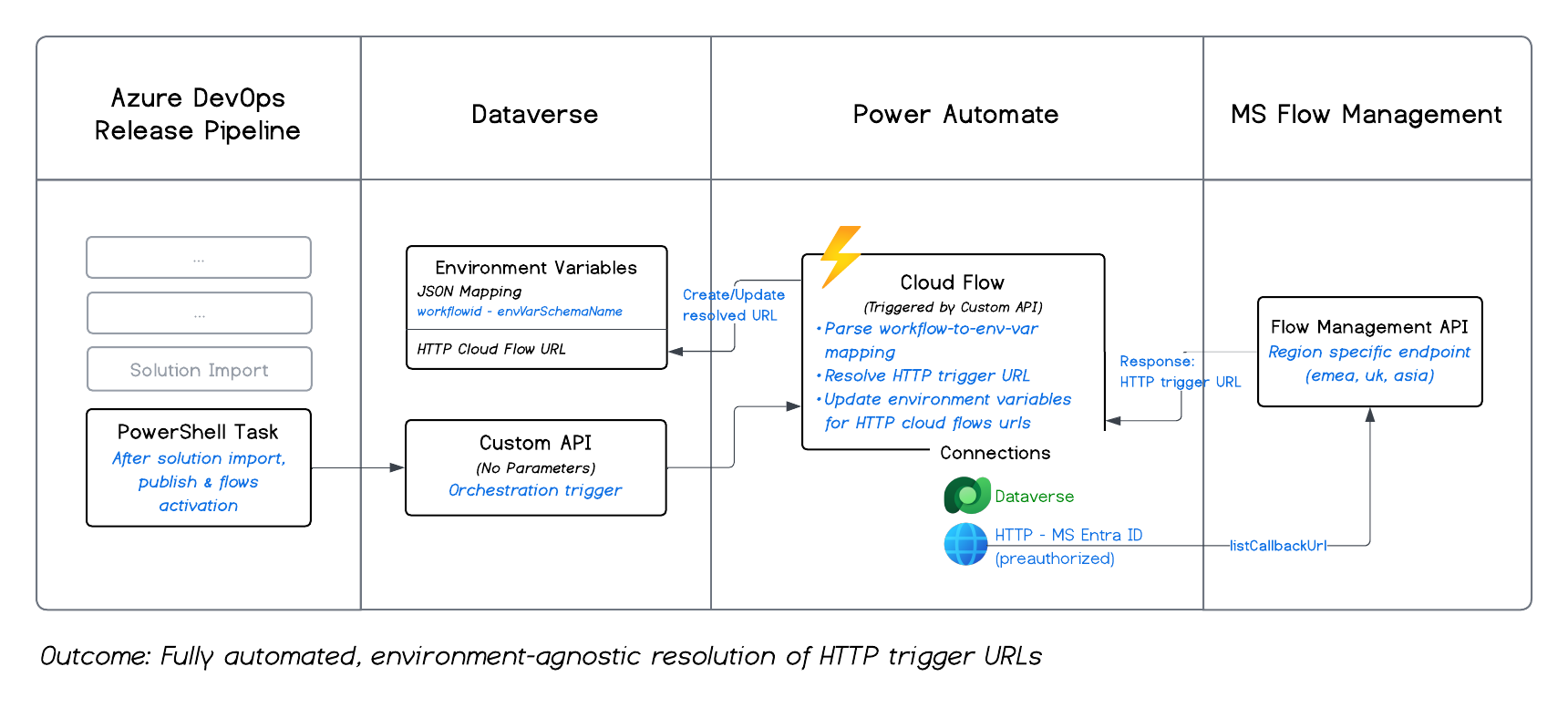

Solution architecture — Azure DevOps Release Pipeline, Dataverse, Power Automate, and MS Flow Management API working together

Solution Design — How It Works

The implementation consists of the following components, working together, being initiated from the release pipeline:

PowerShell Task (Release Pipeline)

Executed as the final task in the target environment’s release stage
Ensures all solutions, cloud flows, and dependencies are already imported and activated

Install-Module -Name Microsoft.Xrm.Tooling.CrmConnector.Powershell -Force -AllowClobber
Install-Module -Name Microsoft.Xrm.Data.PowerShell -Force -AllowClobber

Import-Module Microsoft.Xrm.Tooling.CrmConnector.Powershell
Import-Module Microsoft.Xrm.Data.PowerShell

$customApiName = "ntit_CopyHTTPFlowUrlToEnvironmentVariableValue"
$connection = Get-CrmConnection -ConnectionString 'AuthType=ClientSecret;Url=$(targetenv.BuildTools.DataverseConnectionString);ClientId=$(targetenv.BuildTools.ApplicationId);ClientSecret=$(targetenv.BuildTools.ClientSecret)
try {
    $resp = Microsoft.Xrm.Data.Powershell\Invoke-CrmAction -conn $connection $customApiName -Verbose
    if ($null -eq $resp) {
        Write-Host "Custom API '$customApiName' executed successfully"
    }
}
catch {
    Write-Error "Custom API '$customApiName' failed: $($_.Exception.Message)"
    exit 1
}

Dataverse Custom API

Exposes no parameters and requires no request body
Serves purely as an orchestration trigger
Invoked directly from the PowerShell task

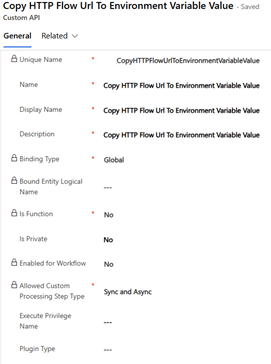

Custom API definition — Copy HTTP Flow Url To Environment Variable Value

Power Automate Cloud Flow

Triggered by the Custom API
Responsible for resolving HTTP trigger URLs dynamically

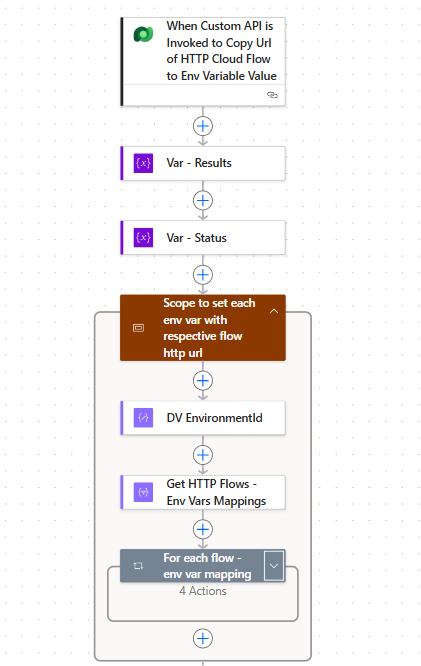

Cloud flow overview — top-level steps

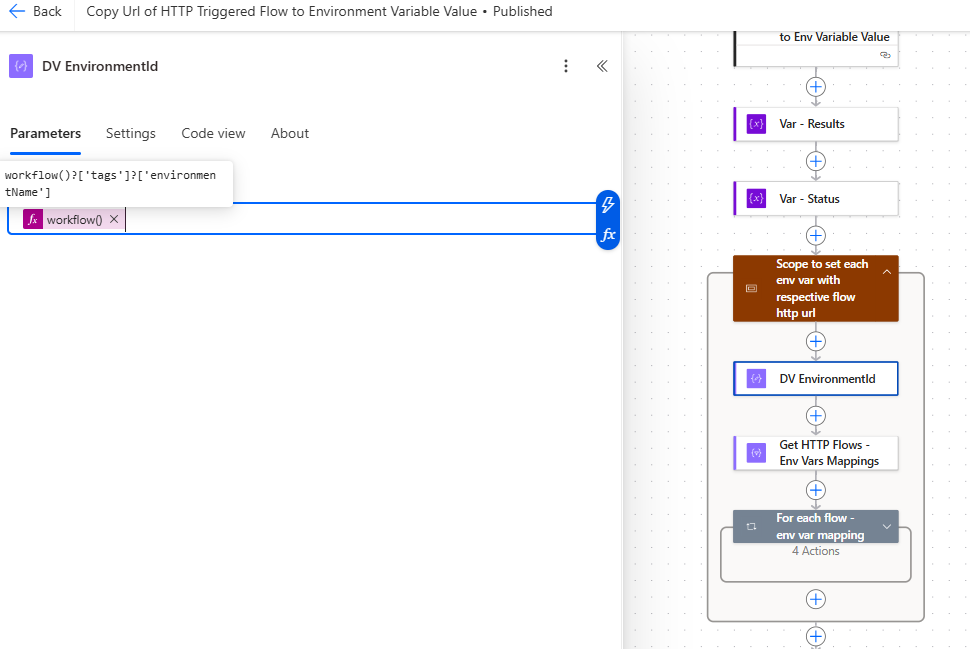

DV EnvironmentId step — extracting environment context using workflow() expression

Configuration Mapping

Maintained as a Dataverse environment variable (JSON-based)
Defines a mapping between workflowid of each HTTP-triggered cloud flow & target environment variable schema name to store resolved URL

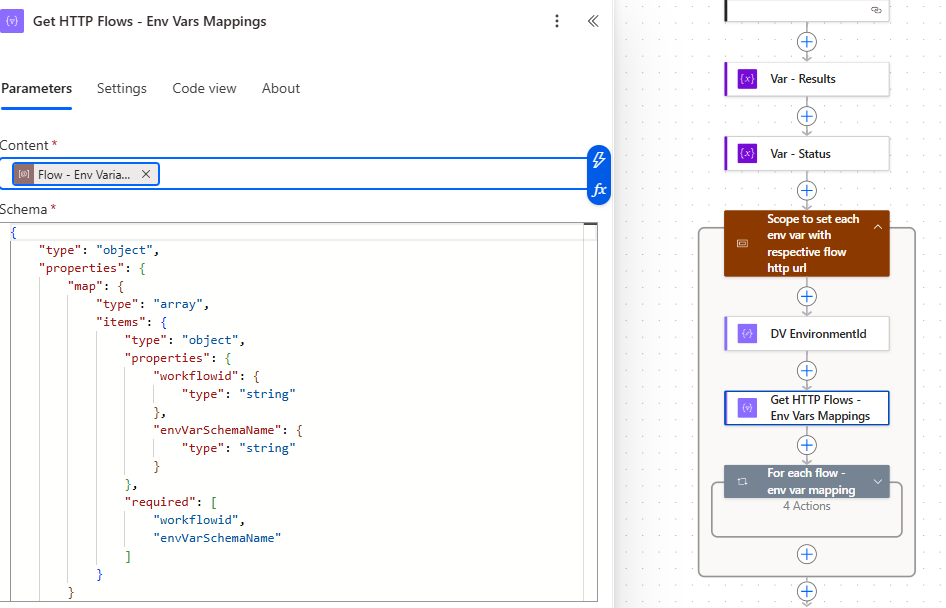

Get HTTP Flows - Env Vars Mappings — JSON schema with workflowid and envVarSchemaName

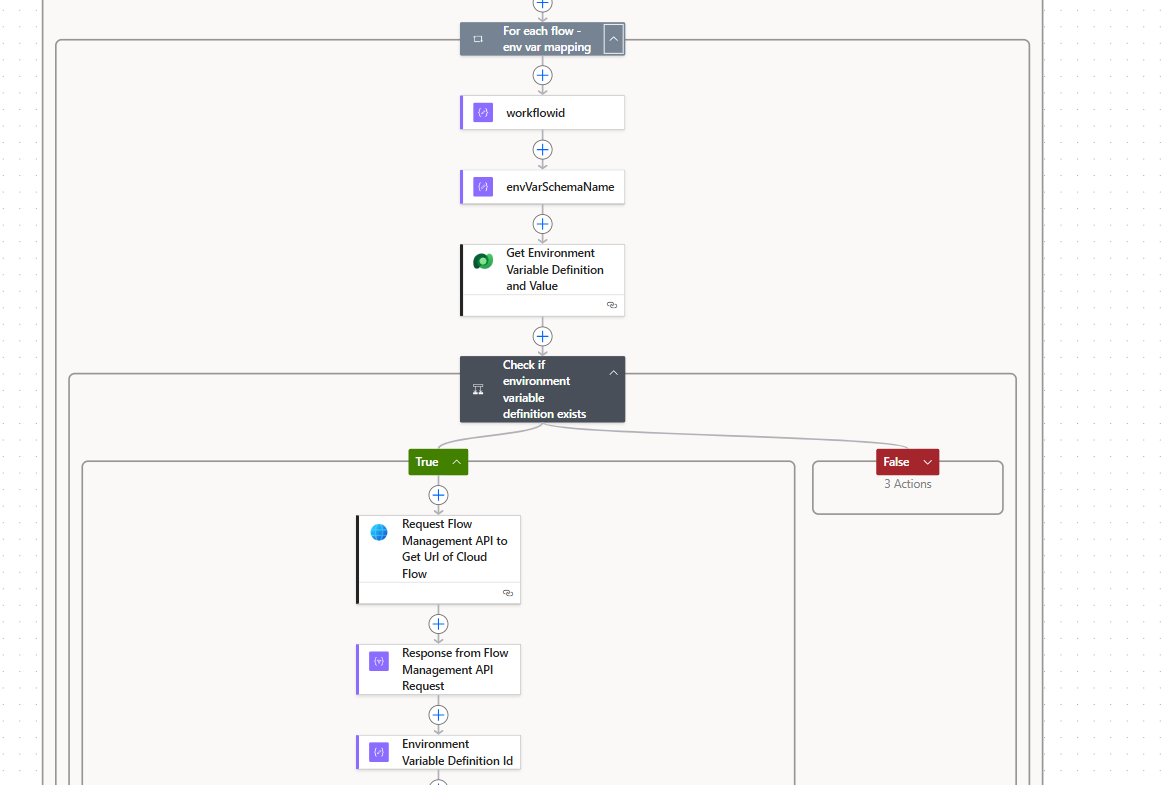

For each flow-env var mapping — iterating through workflowid, envVarSchemaName, getting environment variable definition

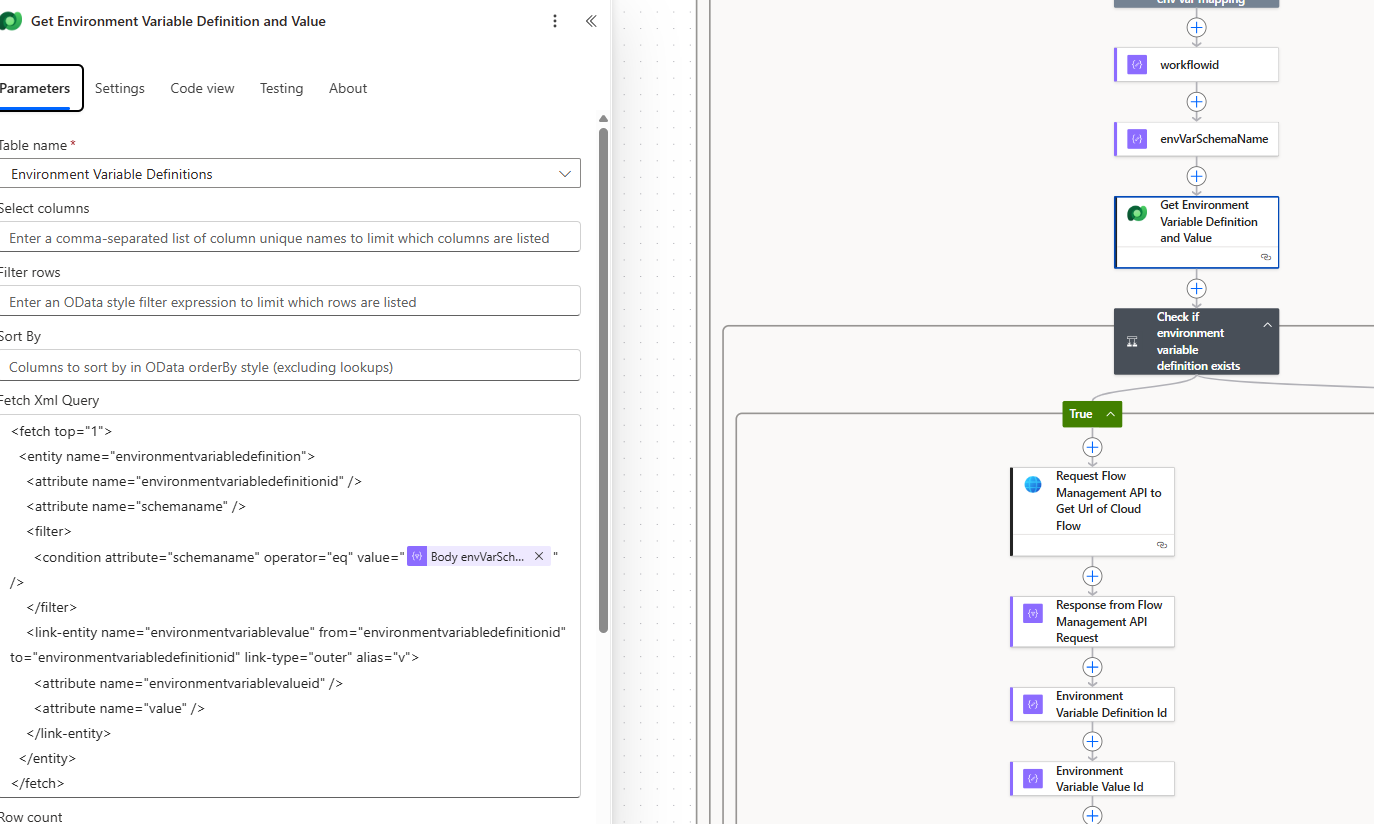

Get Environment Variable Definition and Value — FetchXML query against environmentvariabledefinition

Microsoft Flow Management API Integration

The cloud flow calls the Flow Management API using an Entra ID–authenticated HTTP connection
The API returns the runtime-generated HTTP trigger callback URL
The flow updates the corresponding environment variable in Dataverse
Both the Dataverse and HTTP connections are shared with the service principal used by the release pipeline.

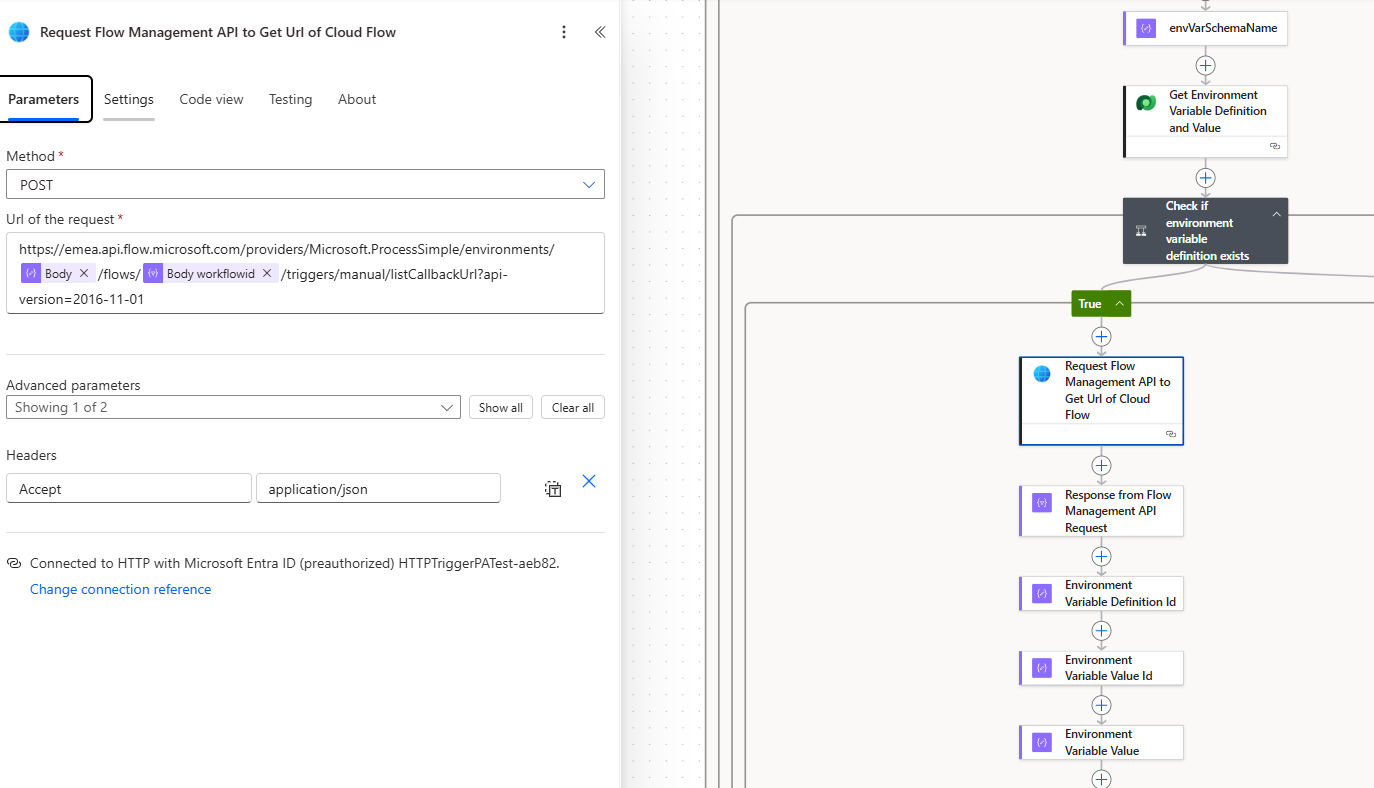

Request Flow Management API to Get Url of Cloud Flow — POST to listCallbackUrl endpoint

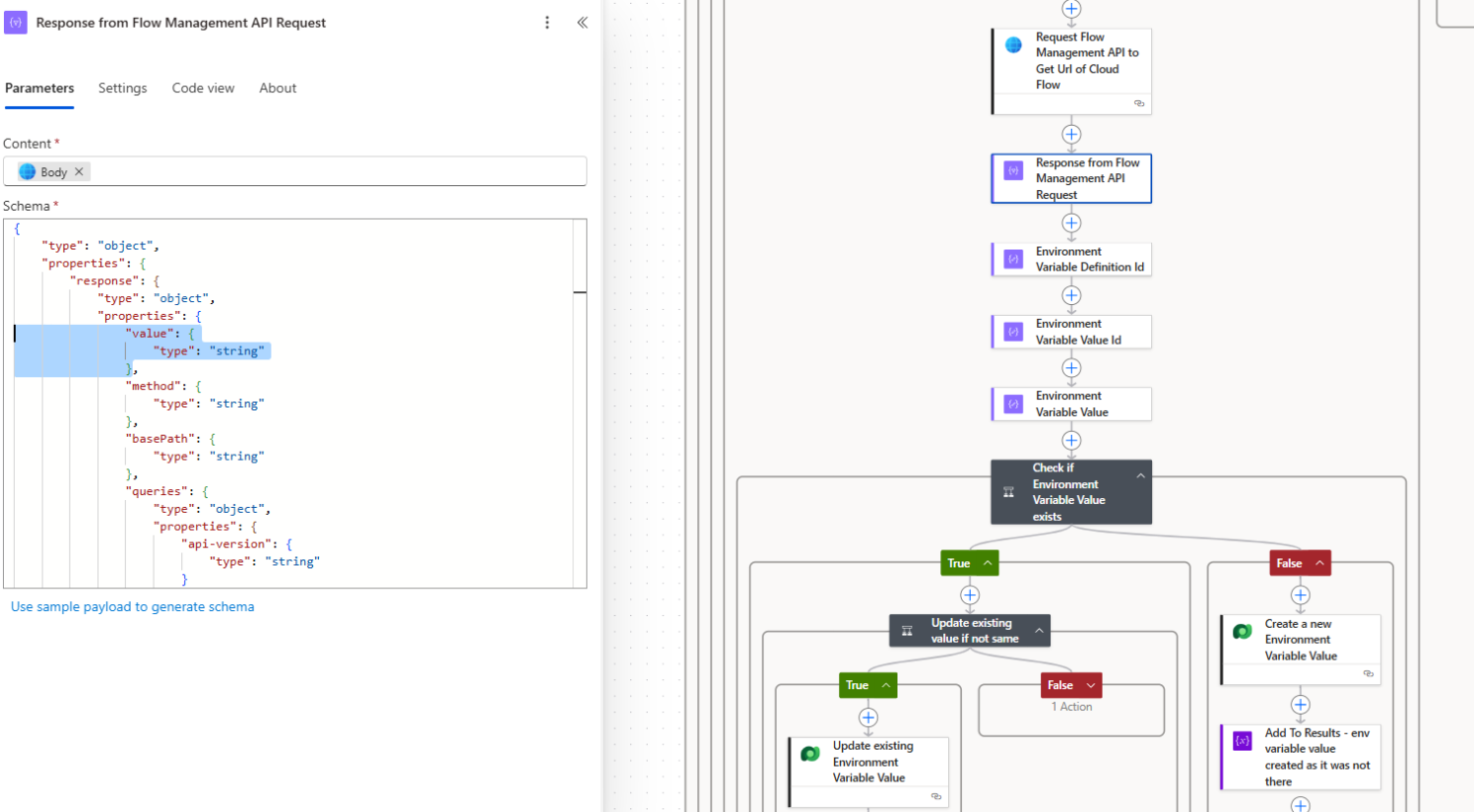

Response from Flow Management API — parsing the callback URL value from the response schema

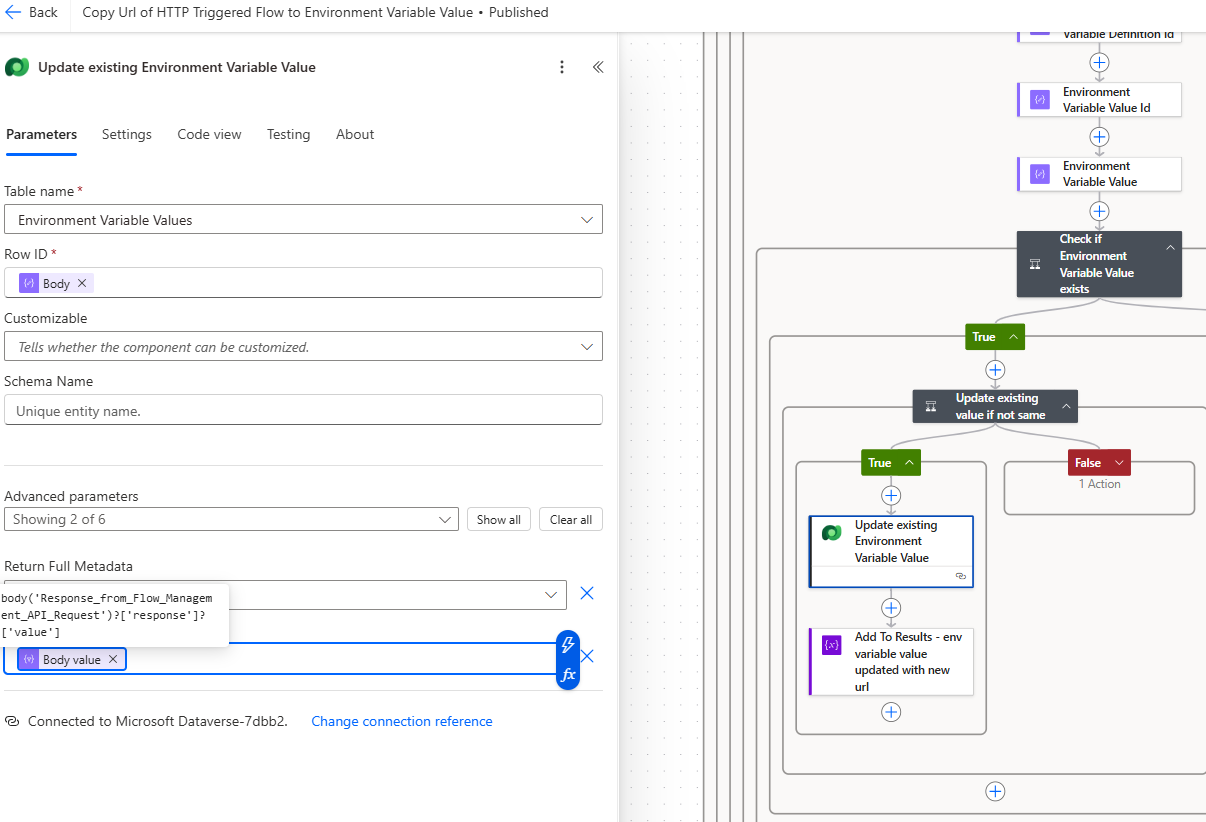

Update existing Environment Variable Value — writing the resolved URL back to Dataverse

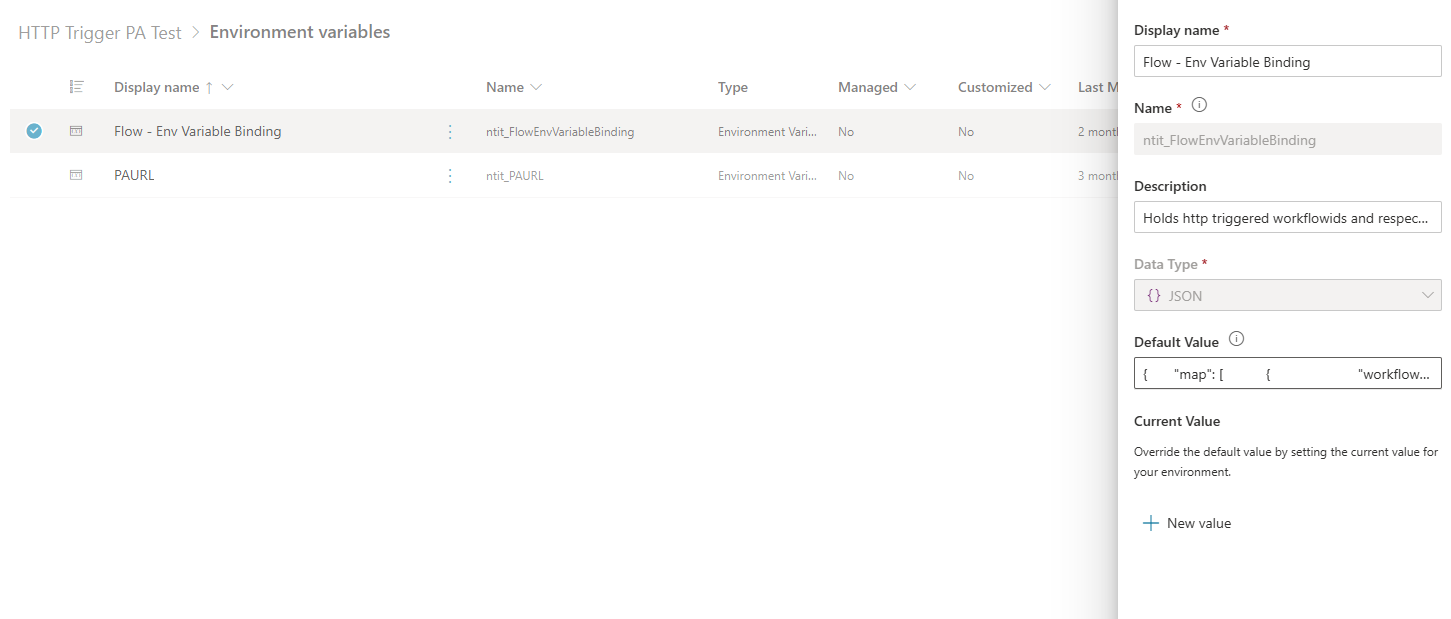

Environment variables in solution — Flow-Env Variable Binding (JSON) and PAURL

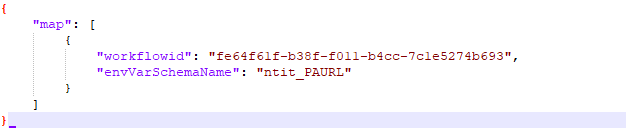

JSON mapping sample — workflowid mapped to envVarSchemaName

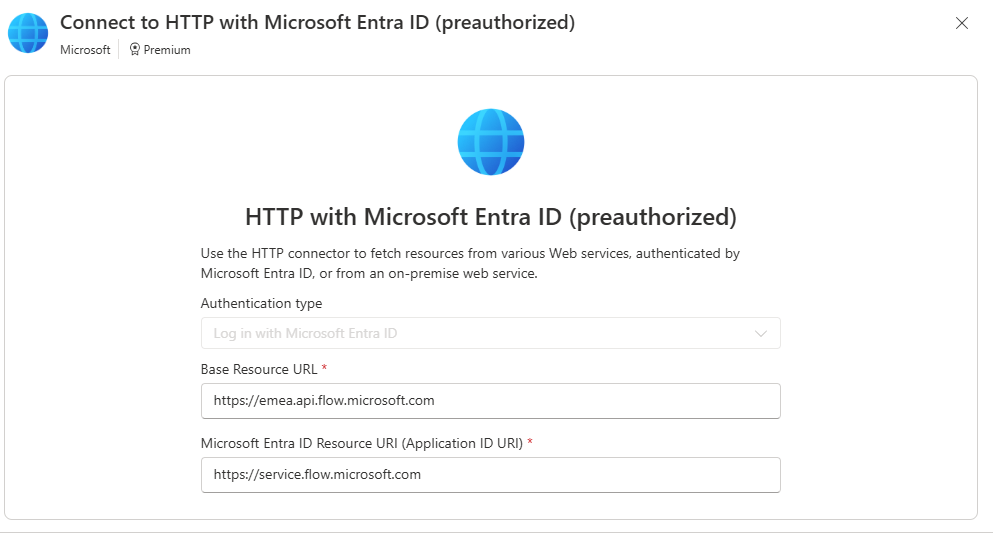

HTTP with Microsoft Entra ID (preauthorized) connection — Base Resource URL and Resource URI for Flow Management API

Outcome and Takeaways

The result is a clean, scalable, and CI/CD-aligned pattern:

Zero manual post-release configuration
Environment-agnostic PCF and client-side code
Fully automated resolution of HTTP trigger URLs
Reusable approach for any HTTP-triggered Power Automate flow

Key Takeaway

“Not all configuration belongs at deploy time. Certain artifacts—such as HTTP trigger URLs—must be resolved at runtime.”

Designing explicitly for that distinction leads to Power Platform solutions that are more resilient, scalable, and automation-friendly.
